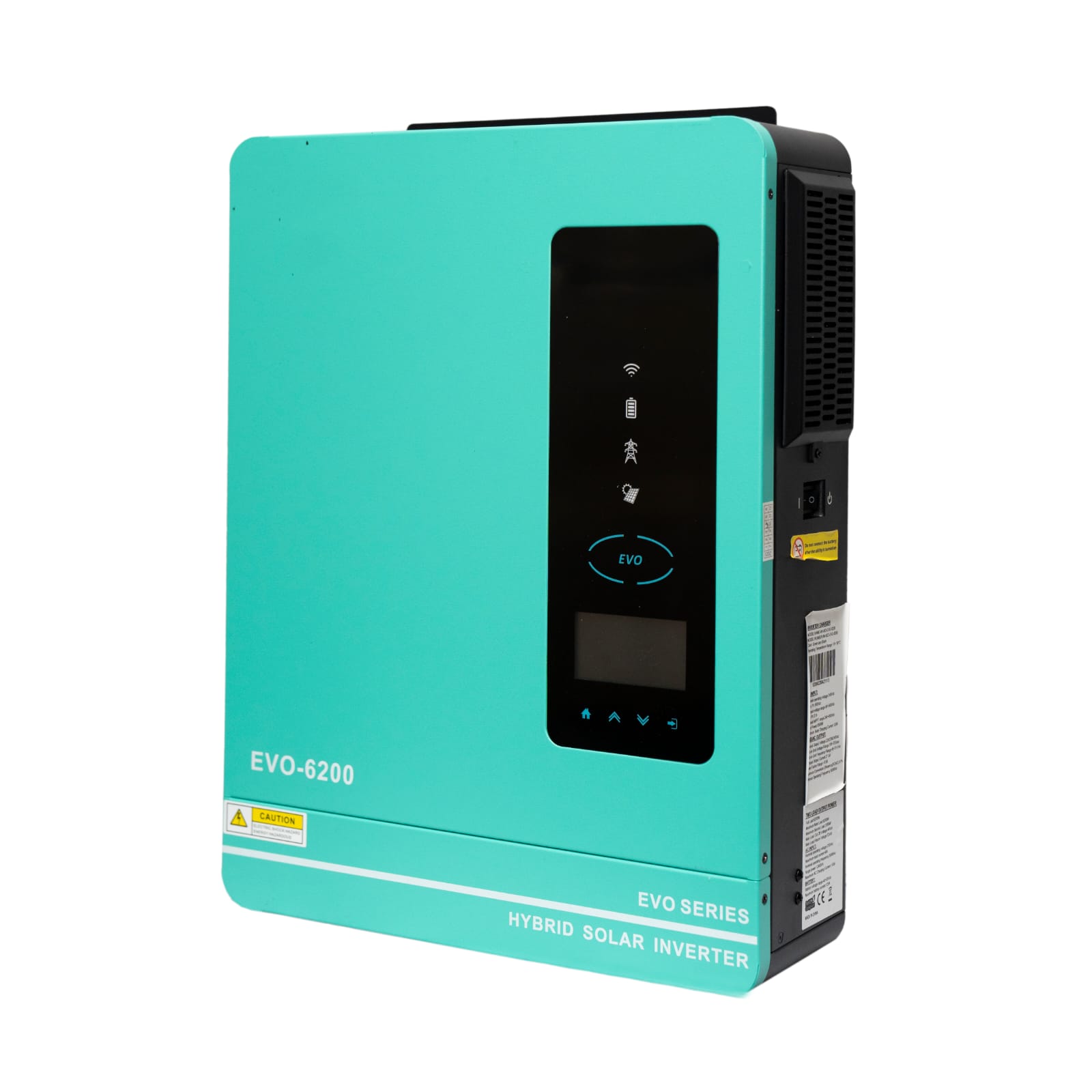

INVERTER 6200 48V ANERN
INVERTER CHARGER
MODEL NAME: AN-SCI-EVO-6200
MODEL NUMBER: AN-SCI-EVO-6200
Color: Green and Black
Operating Temperature Range: -10~50°C
PV INPUT:
Nominal operating voltage: 240Vdc
Vmax PV: 500Vdc
PV input voltage range: 60-450Vdc
Imax PV: 22A
Full load MPPT range: 240-450Vdc
Maximum PV Input Power: 6500W
Maximum Solar Charging Current: 120A
Description
GRID/AC OUTPUT:
Nominal Output Voltage: 220/230/240Vac
Feed-in Grid Voltage Range: 195-253Vac
Feed-in Grid Frequency Range: 50±1Hz
Nominal Output Current: 27.0A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC): 97%
Nominal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load: 6200W
Maximum Main Load: 6200W
Maximum Main Load: 2066W
Main Load Cut Off Voltage: 52Vdc
Main Load Cut Off Voltage: 54Vdc
AC INPUT:
Nominal operating voltage: 230Vac
Maximum input current: 40A
Nominal operating frequency: 50/60Hz
Surge power: 12400VA
Maximum AC Charging Current: 100A
BATTERY:
Battery voltage: 48Vdc
Maximum battery current: 125A
