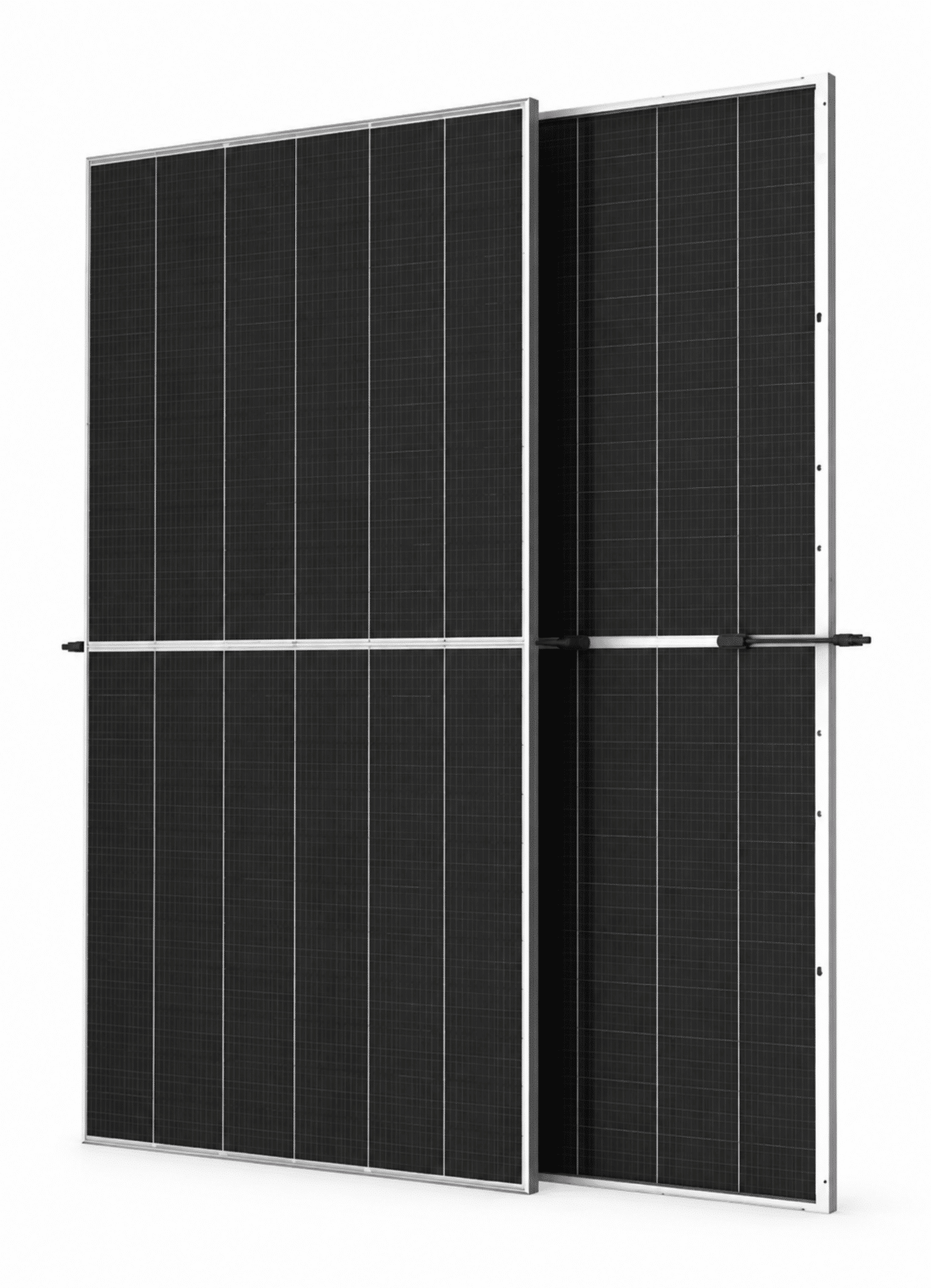

SOLAR PANEL 710W TRINA
MECHANICAL DATA
- Solar cells: n-type HJT
- Cell configuration: 132 cells (6×11×6×11)
- Module dimensions: 2384 × 1303 × 33 mm (93.86 × 51.30 × 1.30 in)
- Weight: 37.5 kg (82.67 lb)
- Superstrate: 2.0 mm (0.08 in), High Transmission, AR Coated Heat Strengthened Glass
- Substrate: 2.0 mm (0.08 in), Heat Strengthened Glass
- Frame: Anodized Aluminum Alloy, Silver Color
- J-Box: Potted, IP68, 1500VDC, 3 Schottky bypass diodes
- Cables: 4.0 mm², 350 mm (13.78 in), ±230 mm (9.06 in), connector included, or customized length
- Connector: Risen Twin PV-SYO2, IP68
- Maximum mechanical test load: 5400 Pa (front) / 2400 Pa (back), under certain installation method
Description
ELECTRICAL DATA (STC)
Model Type: RSM132-8-700-715BHDG
| Specification | 700 W | 705 W | 710 W | 715 W |
|---|---|---|---|---|
| Rated Power in Watts-Pmax (Wp) | 700 | 705 | 710 | 715 |
| Open Circuit Voltage-Voc (V) | 49.83 | 49.92 | 50.01 | 50.09 |
| Short Circuit Current-Isc (A) | 17.82 | 17.91 | 18.00 | 18.10 |
| Maximum Power Voltage-Vmpp (V) | 41.78 | 41.86 | 41.93 | 42.00 |
| Maximum Power Current-Impp (A) | 16.77 | 16.86 | 16.95 | 17.05 |
| Module Efficiency (%) | 22.5 | 22.7 | 22.9 | 23.0 |
STC: Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass 1.5, according to IEC 60904-3.
Bifacial factor: 85±10(%).
Module Efficiency (%): Rounding to the nearest number.
